Controller | Display | Rear Panel | Larger View
- The Icom IC-2820H 2M/440 dual bander has all the features you would expect and some you would not! You get: separate front panel, wideband receive, 3 power settings, built-in CTCSS decode/encode, selectable amber/green display, PC compatibility and 522 memory channels. V/V and U/U receive is available.
- IC-2820 IC-2820 Radio Programming Software The WCS-2820 software makes it easy to set up memory channels details including names and tones, limit memories for Programmable Scanning functions, memory banks, D-Star option, and options for scanning.
The IC-2820H has a total of 522 memory channels, 500 regular channels, 2 call channels and 20 scan edge channels. Each memory channel stores tone frequency, skip information and so on. The Dynamic Memory Scan (DMS) system divides these memories into 26 groups, A to Z, and provides easy channel selection.
The Icom IC-2820H 2M/440 dual bander has all the features you would expect and some you would not! You get: separate front panel, wideband receive, 3 power settings, built-in CTCSS decode/encode, selectable amber/green display, PC compatibility and 522 memory channels. V/V and U/U receive is available. The rear panel has two SO-239 antenna jacks to support diversity reception (two antennas required). The diversity function compares the receiving signal strength from two different antennas, ANT1 and ANT2, and automatically selects the strongest signal. This feature is useful when you are listening in a moving vehicle or the transmitting station itself is moving. The band scope function lets you watch conditions near the receiving frequency. Diversity receiving, for improved signal stability is available in 127 MHz, 136 MHz, 146 MHz, 375 MHz, 440 MHz and 500 MHz bands only (two antennas required).
The IC-2820H is D-STAR upgradable with the optional UT-123. Power output is 50/15/5 watts on 2 meters and 50/15/5 watts on 440 MHz. It is 9600 BPS packet ready too (6 pin DIN). This radio comes with full function backlit HM-133 remote DTMF hand mic, mounting bracket, power cord and spare fuses. Please note that the mic plugs into the body (not the head). Main unit size: 5.9 x 1.65 x 7.4 inches 3.3 lbs. (150x40x188mm 1.5 kg). Controller size: 5.9 x 2.6 x 1.25 inches 7.4 ounces (150x58x32mm 210g). This model requires 13.8 VDC at 12 Amps. This radio is supplied with both the OPC-1663 (11 foot) and OPC-1712 (3.9 inch) head separation cables.
This radio is reviewed in the November, 2007 issue of QST.
Icom Ic-2820h Programming Software Update
| Photo | Item | Description | List Price | Your Price | Order |
|---|---|---|---|---|
| #4492 | CS-2820 | Windows 98/98SE/2000/Me/XP cloning software CD [OPC-478, OPC-478U, OPC-478UC or OPC-1529R cable required]. | $ 45.00 | $ 24.98 |
| HM-133 | Remote control Hand Mic. [As supplied]. Click here to view. | Discontinued | ||
| HM-154 | Electret condenser hand mic with Up-Down. No DTMF keypad! Modular plug. INFO | Not in stock | ||
| HM-154T | Electret condenser DTMF hand mic with Up-Down. Modular plug. VIEW | Discontinued | ||
| OPC- 347 | DC Cord (20 Amp) 23.0 feet (7 m). | Not in stock | ||
| OPC- 440 | Microphone extension cable 16.4 feet (5 m). | Not in stock | ||
| OPC- 441 | Speaker extension cable 16.4 feet (5 m). | Discontinued | ||
| OPC- 474 | Cable for transceiver to transceiver cloning. | Not in stock | ||

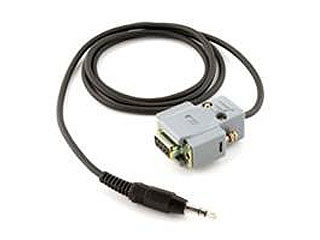

| OPC- 478 | Cable for PC to transceiver cloning. DB9F to 3 conductor 3.5 mm mini plug. | Not in stock | ||
| OPC- 478UC | USB PC to 2820H cloning cable with Windows USB drivers CD. INFO | Not in stock | ||
| OPC- 589 | Mic adapter cable (connects 8 pin mic to radio's modular mic jack). | Discontinued | ||
| #2990 | OPC-1132 | DC Cord (20 Amp, double fused) 9.8 feet (3 m) [as supplied]. | $ 45.00 | $ 29.98 |
| OPC-1529R | Serial data cable to PC. | Discontinued | ||
| OPC-1663 | Head separation cable 11 foot [as supplied]. | Discontinued | ||
| OPC-1712 | Head separation cable 4 inch [as supplied]. | Discontinued | ||
| SM-25 | Desk mic with built in preamp to modular plug. VIEW | Discontinued | ||
| SP-10 | Matching mobile speaker with bracket. | Discontinued | ||
| SP-35 | Matching mobile speaker with bracket. INFO | Not in stock | ||
| UT-123 | D-Star DV Digital Voice / GPS Unit INFO | Discontinued | ||
